app icon TwlNandTool

This is the best DSi NAND repair tool out there, offering features such as:

  • Fixing MBR
  • Formatting FAT partitions
  • Fixing Stage2 (NandFirm)
  • Recovering deleted HWInfo secure
  • Installing minimal firmware titles and unlaunch
  • Lots of useful NAND diagnostic info

Why do these matter? You can create a new working NAND from scratch! No backups needed (but still recommended)!

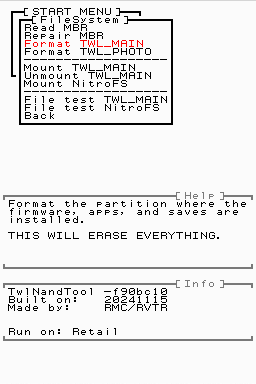

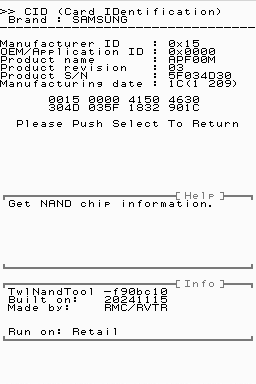

FileSystem menuNAND CID info

Contributing

I'm basing a lot of this off of my private DSi NAND archive and a lot of DSi factory tools. If you have any of the above, especially a bricked DSi, please contact me. Having these as a reference is extremely helpful for covering more edge cases.

Notes

  • I am including my own hostile and outdated fork of libfat. This is to block nand_Startup() during fatMount(). Without this having a NAND re-mount would run nand_Startup() more than once and break every NAND R/W function until reboot...
  • I do not use the release NandFirm/stage2/bootloader (v2435-8325). Instead I use newer NandFirms as listed below. These NandFirms are able to run unlaunch, however they will stop the installer from working ("unknown bootcode version"). Unlaunch installs carry a brick risk by sometimes erasing the Launcher TMD, so this will somewhat forcefully encourage users to move to a safer installer. Normally I'm against intentionally breaking things but this will prevent future bricks.
    • v2265-9336 (prod)
    • v2725-9336 (dev)
  • My HWInfo Secure recovery works by searching specific locations for HWInfo. As far as I can tell an officially created HWInfo Secure will only start at one of the below 3 offsets. Homebrew (like this tool) will likely create it elsewhere.
    • 0x790000: retail and pandas
    • 0x784000: ISTC (needs confirmation) and ISTD
    • 0x794000: Happened when I deleted HWInfo and let SystemUpdater create it

Including system files

B-b-but you have system files like the bootloader! These files are required to boot a DSi and almost always cannot be custom made due to signing. This is a tool meant to fix every possible software brick, and to do so in an accessible way. Most people are not going to know how to recover a bootloader, find the right FontTable for their region, or get the correct and safe wlanfirm/sysmenuVersion. Even given a well written guide, I know the "what's a hex editor" or "what's a byte" messages all too well. It is not safe to force people to chase after things they may not understand. Especially when one wrong file will cause a brick, and the owner will be none the wiser.
